ShapeFlex Curved & Custom LED Display System

Scenario Positioning

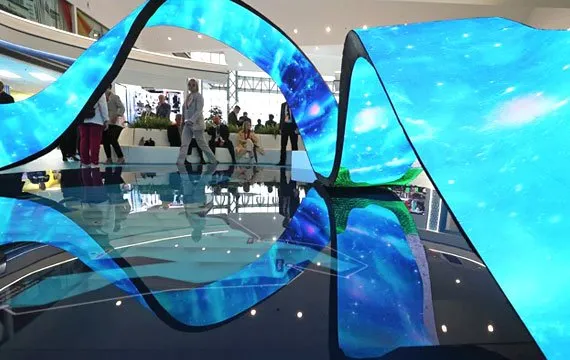

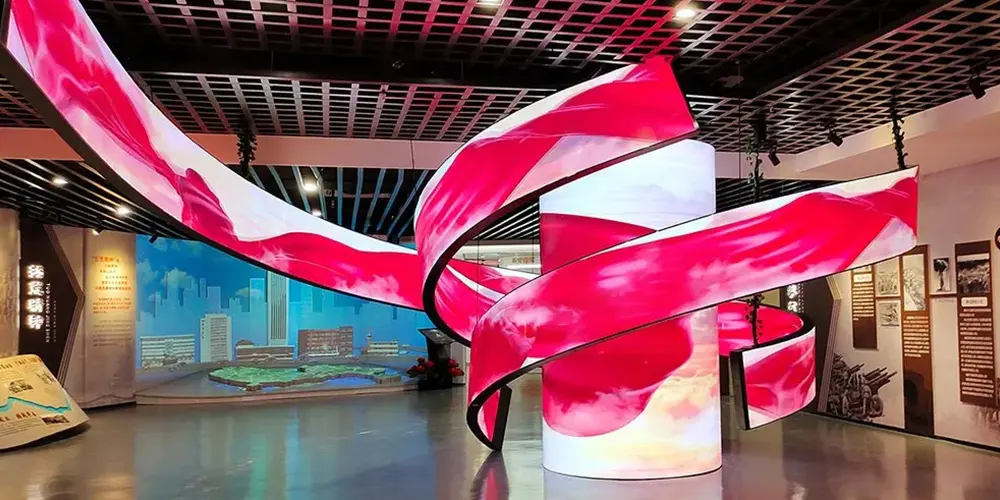

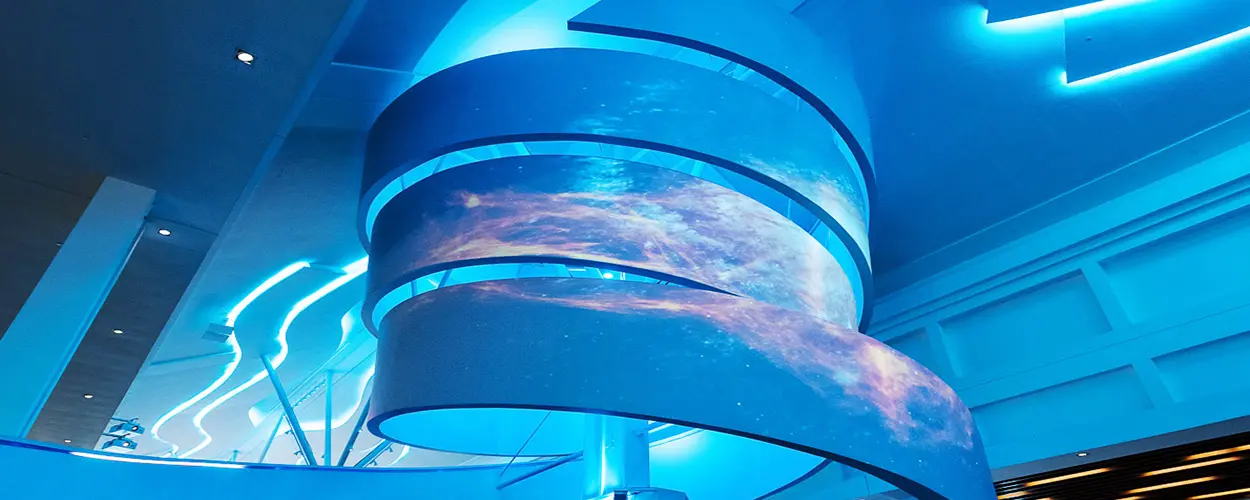

A cutting-edge irregular-shaped LED solution for creative architectural integration, stage design, and immersive art installations, enabling limitless geometric possibilities beyond flat screens.

Core Technical Advantages

1. Free-Form Engineering

• Modular hexagon/triangle units (100mm–500mm/side) for circles, waves, or 3D sculptures.

• Bend radius ≥300mm; ±15° horizontal/vertical curvature per module.

2. Seamless Visuals

• Gap compensation tech: ≤0.5mm joints with edge-blending algorithms.

• 16-bit color uniformity across curved surfaces (Delta E<2).

3. Lightweight & Durable

• Aluminum alloy frames (8kg/㎡) for ceiling-hung or floating setups.

• IP54 dust/moisture resistance (indoor/covered outdoor use).

4. Real-Time Control

• Map content to irregular shapes via drag-and-drop software (OBJ/SVG import).

• 3,840Hz refresh rate for distortion-free motion on curved surfaces.

Key Applications

• Retail: Ceiling-mounted organic shapes showing floating brand animations.

• Events: Stage domes with 270° wrap-around live feeds (P2.5–P4 pitch).

• Museums: Interactive 3D LED sculptures with capacitive touch response.

• Architecture: Building-column wraps displaying dynamic data visualizations.

Technical Specifications

Value Proposition

• Rapid Prototyping: 3D preview tools confirm fit before installation.

• Maintenance Ease: Front-access modules replaceable in 30 seconds.

• Content Freedom: Partner studios provide shape-optimized 3D/AR content.

FAQ
Q1: How to ensure image continuity on complex shapes?
→ Proprietary warp processor auto-adjusts content to 3D surfaces.

Q2: Can it withstand outdoor wind loads?
→ Optional wind-resistant bracing for permanent outdoor installations.

Q3: Minimum order for custom shapes?
→ 10㎡ starter kit; bespoke CAD designs supported.

Conclusion
ShapeFlex redefines spatial storytelling by merging structural flexibility with cinematic visuals, empowering brands and artists to break free from rectangular constraints. Its plug-and-play modularity and intelligent content mapping make irregular LED displays accessible, reliable, and awe-inspiring.
