Reissdisplay RFR-Pro Series: High-brightness, modular LED panel for versatile rental use, seamless connection, perfect for various events and displays.

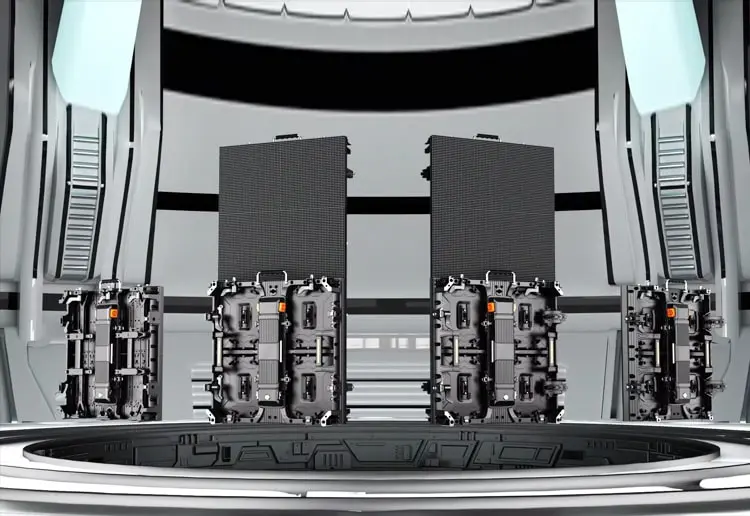

– Available in multiple panel sizes 500x500mm, 500x1000mm die-cast aluminum
– Excellent Performance
– Seamless Display and Better Visual Effects

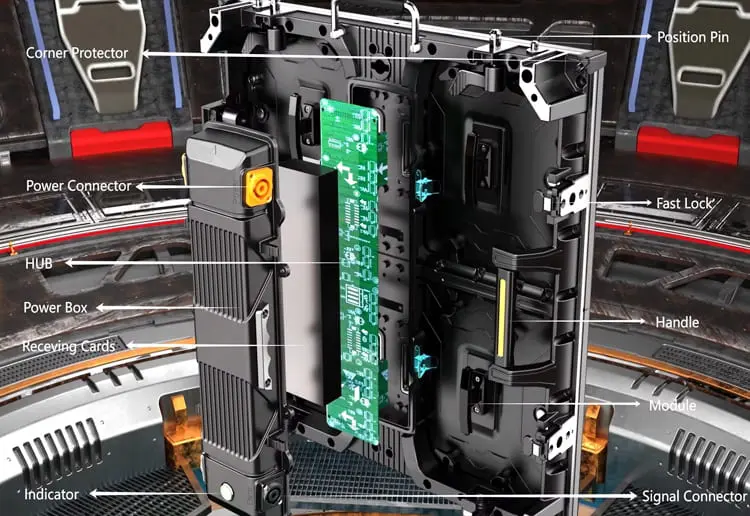

– Aluminum Cabinet, Lightweight, Safetyand – Reliability, No Distortion
– Easy to Install and Maintain
– High Performance Driving IC

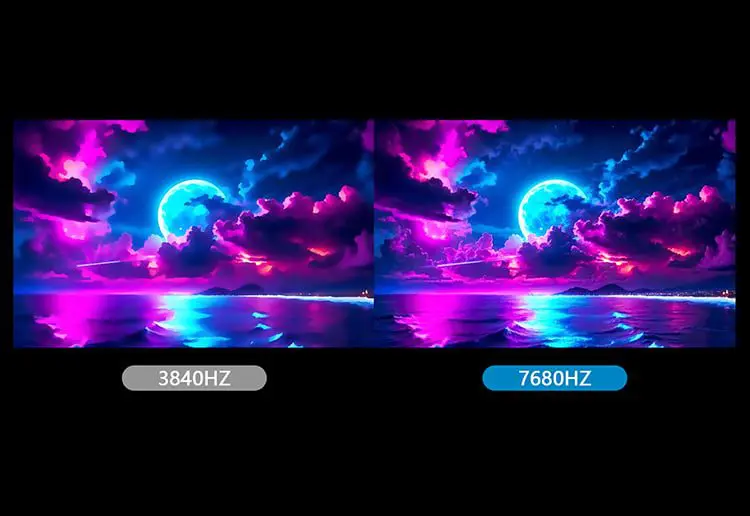

Immerse yourself in a captivating visual experience with REISSDSPLAY 7680Hz display, delivering unparalleled clarity and seamless motion.

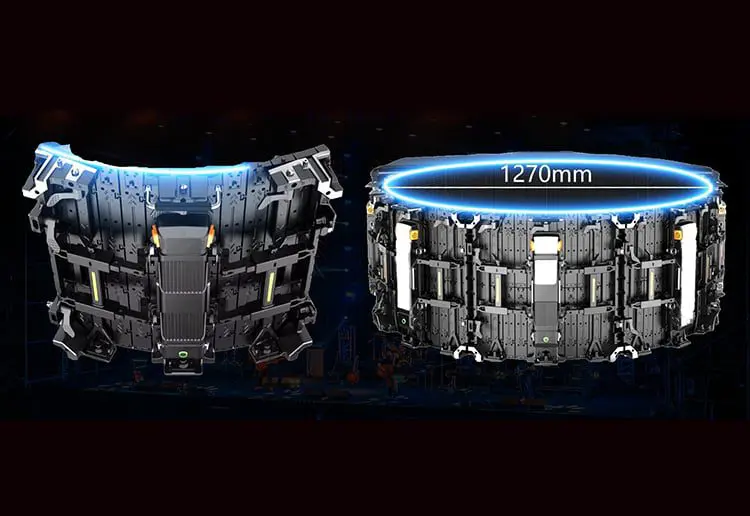

Eight cabinets can be assembled into a circle with a diameter of 1.27 meters.

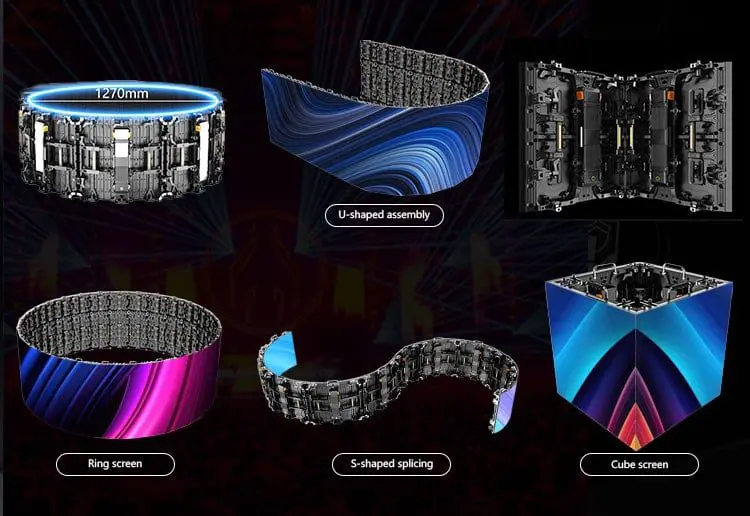

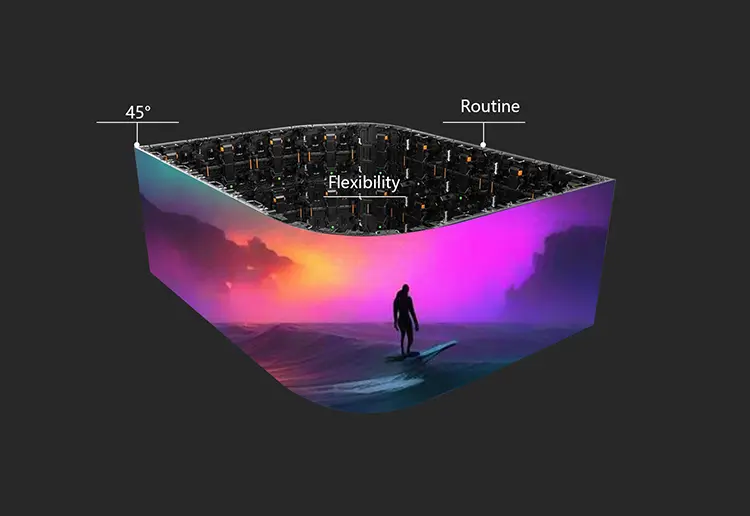

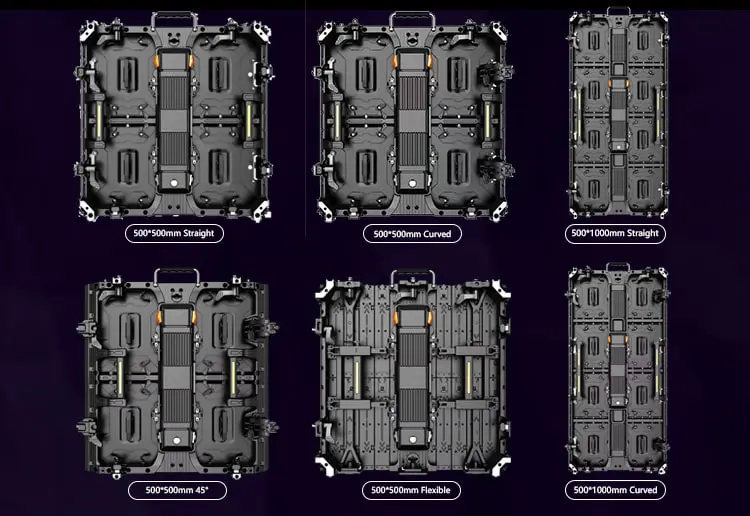

Normal cabinet, curved cabinet, 45°cabinet, flexible cabinet can be mixed and assembled. No disassembly tools required, quick and easy splicing. Make the screen shape more richer while saving costs.
The Pro series is Designed with a unique curved lock system for the inner arc & outer arc with -10° to 10°. A full function solution to meet all needs of the rental screen.
Safety protection design l High reliability and long life. Provide a variety of panel designs to meet all your needs

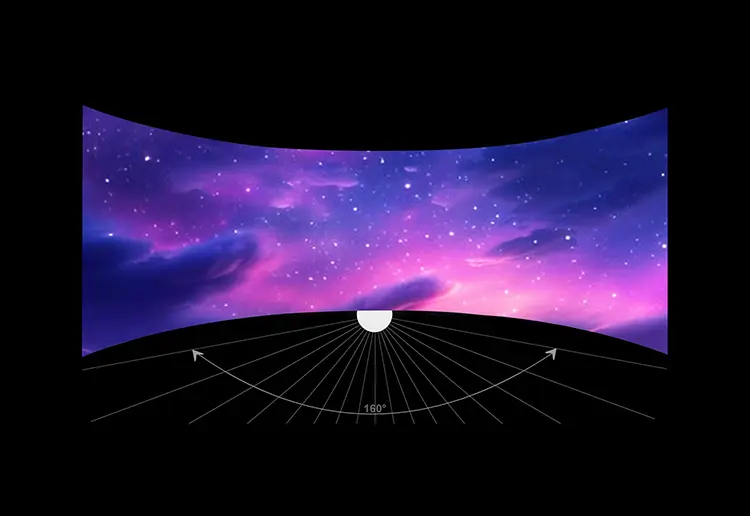

With wide viewing angle capability (160° h/V) and wide visual coverage ensure optimal visibility from every vantage point.

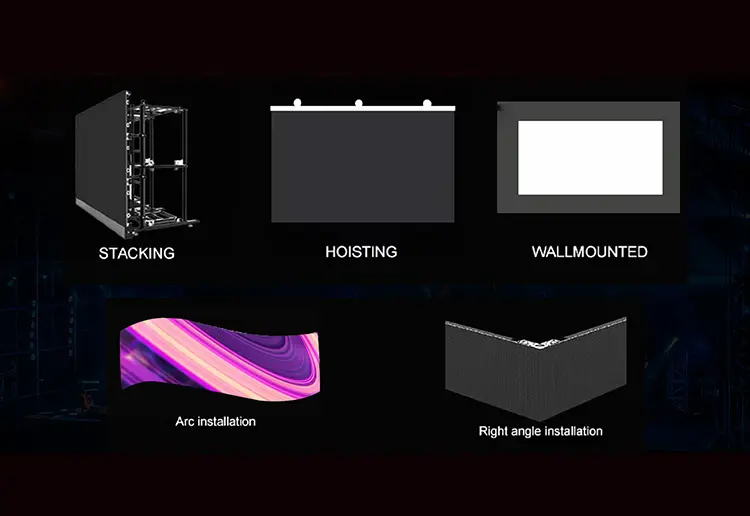

Flexibility and creativity in display setups
Ability to select the appropriate method based on venue and event requirements
Creation of impactful visual experiences that captivate audiences
Ensuring stability and safety for the display
1. Unbelievable durability – Highlights the extended service lifespan to maximize the investment.

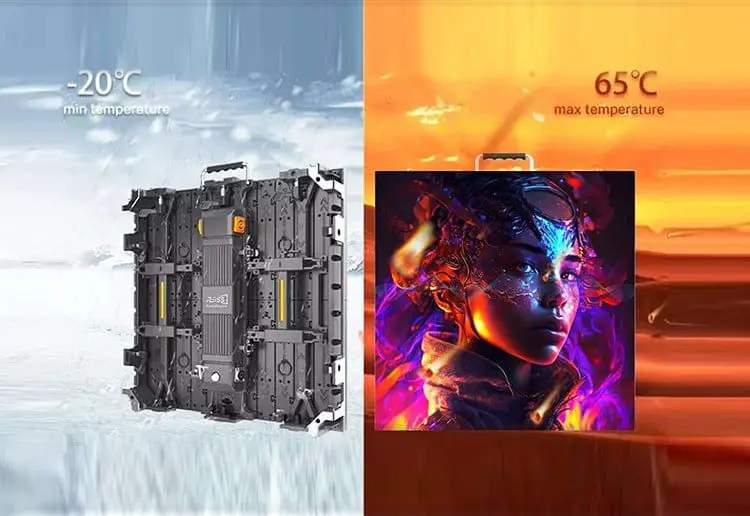

2. Overheating protection – Conveys the robust IP65/IP65 (Front/Back) rating for long-term, reliable operations.
Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 4.81 |
Operating Environment | Indoor | Indoor | Indoor&Outdoor | Indoor&Outdoor | Indoor&Outdoor | Indoor&Outdoor |
Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
Cabinet Size (mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
Cabinet Resolution (W×H) | 320*320 | 256*256 | 192*192 | 168*168 | 128*128 | 104*104 |
IP Grade | Front IP55Rear IP62 | Front IP55 RearIP62 | Front IP65 Rear IP65 | Front IP65 Rear IP65 | Front IP65 Rear IP65 | Front IP65 Rear IP65 |
Weight (kg/cabinet) | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 |
White Balance Brightness (nit) | 800-1100 | 800-1200 | 800-5500 | 800-5500 | 800-5500 | 800-5500 |
Horizontal / Vertical Viewing Angle | 165/165 | 160/160 | 165/165 | 160/160 | 160/160 | 160/160 |
Power Consumption(W/㎡) | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% |
Refresh Rate(Hz) | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 |
Control System | Nova | Nova | Nova | Nova | Nova | Nova |
Certification | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL |
