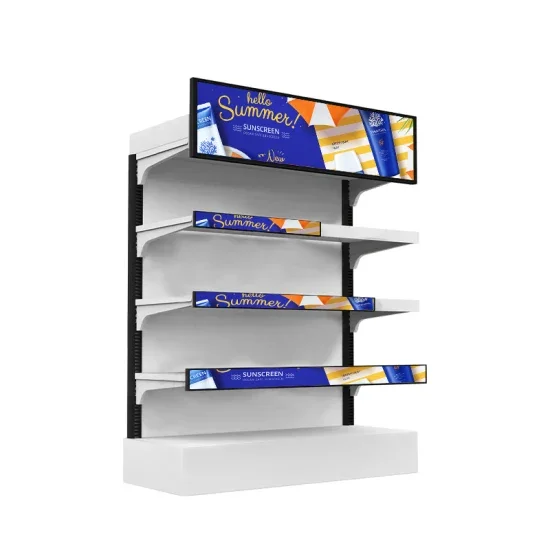

16.4inch Android HD Bar: USB Ad Smart Signage

This 16.4-inch TFT screen features a resolution of 1366x238 pixels, with a brightness of 1000 cd/m² and wide viewing angles of 178°(H) x 178°(V). It offers a high contrast ratio of 3000:1, supports 60

Product size

Get a quote Set OEM

LCD display Details

BR16L1B-N Advertising Screen Overview

This device features a 16.4-inch TFT screen with a resolution of 1366x238 pixels and brightness of 1000 cd/m². It uses an WLED backlight source and has a viewing angle of 178°(H) X 178°(V). The contrast ratio is 3000:1 and it supports a frame rate of 60 Hz. The color depth is 16.7M , 50% NTSC and the response time is 6ms.

The system runs on Rockchip PX30 Quad core ARM Cotex-A35 processor clocked at 1.5GHz and comes with 1GB DDR3 RAM (selectable between 1GB/2GB) and 8GB built-in storage (selectable between 8GB/16GB/32GB/64GB). It supports external storage up to 64GB TF card.

It supports wireless network connectivity via Wi-Fi and Bluetooth V4.0. The interface includes 1 micro USB (OTG), 1 SD card slot, and 1 power supply (DC 12V 3A). The operating system is Android 8.1.

The power consumption is ≤18W and the voltage is DC 12V. The net weight of the device is 0.7 kg.

The working environment temperature should be between 0°C~45°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.

The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.

Product feature

High-definition LCD display
Supports 7*24-hour operation
Single machine playback
Portrait mode display

Product Parameter(Model: BR16L1B-N)

TFT Screen	Size	16.4"
	Display area	409.8(H)X71.4(V)mm
	Resolution	1366(V)x238(H)
	Brightness	1000 cd/㎡
	Backlight source	WLED
	Lifespan	30000 hours
	Viewable angle	178°(H) X 178°(V)
	Contrast ratio	3000:1
	Frame rate	60 Hz
	Color depth	16.7M , 50% NTSC
	Response time	6ms
System	Processor	Rockchip PX30 Quad core ARM Cotex-A35 dominant frequency1.5G
	Memory	1GB DDR3 (1GB/2GB selectable)
	Built-in storage	8GB (8GB/16GB/32GB/64GB selectable)
	External storage	Max supports 64GB TF card
	Network/BT	Supports 2.4G wireless network WiFi, Bluetooth V4.0 connectivity
	Interface	1 micro USB (OTG), 1 SD card slot, 1 power supply (DC 12V 3A)
	Operating System	Android 8.1
Power supply	Power	≤18W
Power supply	Voltage	DC 12V
Whole machine and packaging	Size	432.393.917.8mm
	Net weight	0.7 kg
	Package size (8 units/case)	TBA
	Gross weight	TBA
Environment	Working environment	Temperature: 0°C~45°C Humidity: 10%~85% Pressure: 86kPa~104kPa
Environment	Storage environment	Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa
Certification	CE, FCC certification	Available
Accessories	Warranty	1 year
	Accessories	Adapters, wall mounting plate
	Other options	OTG cable
Optional	information release system	Multiple Format Playback: Displays images, text, videos, web pages, and more.
		Multi-Zone Visual Editing: Supports template management for flexible content layout.
		Distributed Remote Management: Enables remote updates and scheduled power on/off.
		Multi-Account Management: Allows for the assignment of over 50 types of permissions.
		System Monitoring: Provides real-time status updates and terminal log queries.
		Log Statistics and Export: Terminal logs can be queried and exported to Excel documents.
