23.1inch Android Touch Bar: HD USB Ad Smart Signage

This 23.1-inch HD advertising screen features a 10-point capacitive touchscreen, 1920x1584 resolution, 700 cd/m² brightness, and WLED backlight. It runs on a RockChip RK3566 processor with 2GB RAM, su

Get a quote Set OEM

LCD display Details

BR23X1B-T Advertising Screen Overview

This product is a 23.1-inch high-definition advertising screen with a capacitive touchscreen featuring G+G structure and 10-point touch capabilities. It has a WLED backlight source and a lifespan of 30,000 hours. The contrast ratio is 1000:1 and it supports a frame rate of 60 Hz. The color depth is 16.7M , 72% NTSC.

The system runs on a RockChip RK3566 quad-core processor with a maximum clock speed of up to 1.8GHz and comes with 2GB of standard memory and 16GB of built-in storage (selectable between 16GB/32GB/64GB). It supports external storage up to 64GB TF card. It supports wireless network connectivity via Wi-Fi and Bluetooth v4.0. The device operates on a 12V power supply and includes two micro USB ports (OTG), one TF card slot, and one Type-c (DC 12V power supply) port.

The power consumption is ≤16W and the voltage is DC 12V. The net weight of the device is 1.05kg.

The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.

The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.

Product feature

High definition liquid crystal display
Supports 7x16 hour operation
Capacitive touch screen
Automatic APK launch
AG glass protection

Product Parameter(Model: BR23X1B-T)

TFT Screen	Size	23.1"

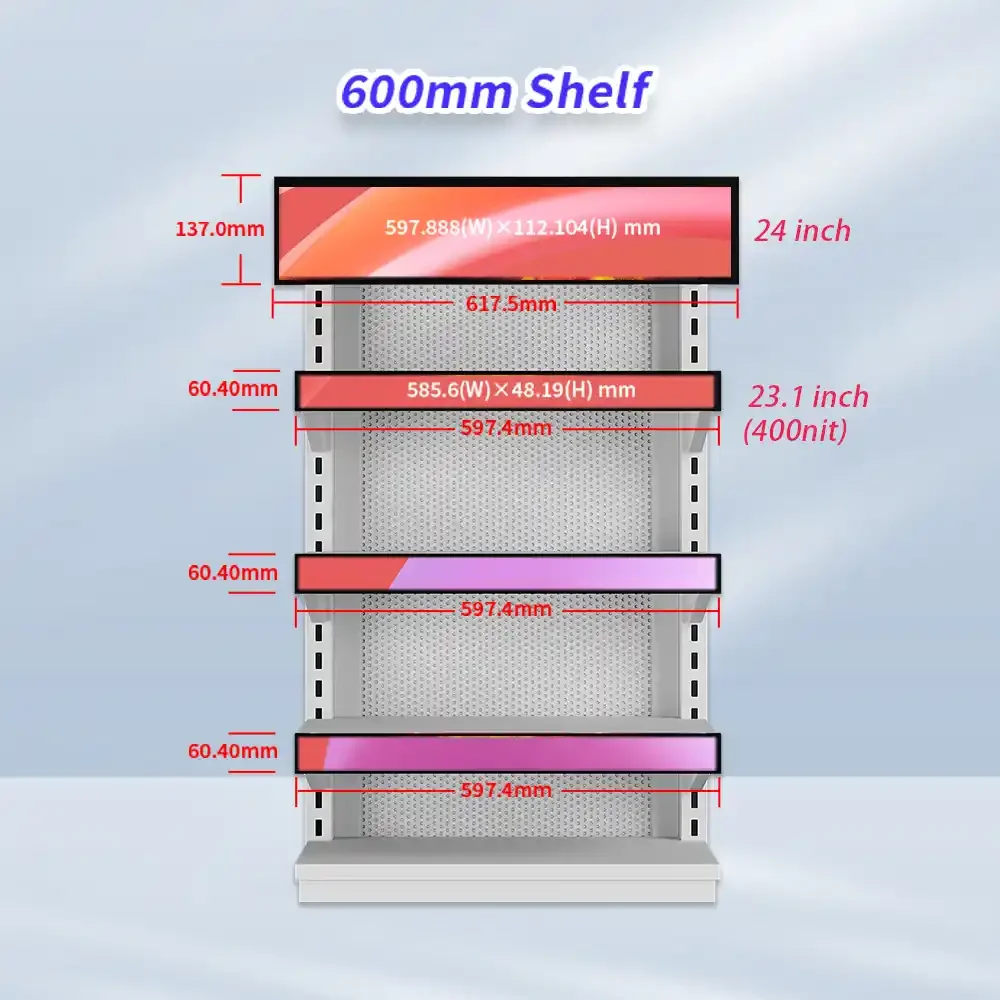

	Display area	585.216(H)X48.1584(V)mm
	Resolution	1920(V)x158(H)
	Brightness	700 cd/㎡
	Backlight source	WLED
	Lifespan	30000 hours
	Viewable angle	85/85/85/85 (Typ.)(CR≥10)
	Contrast ratio	1000:1
	Frame rate	60 Hz
	Color depth	16.7M , 72% NTSC
Touchscreen	Capacitive touch	G+G structure, 10-point touch, AG surface coating
System	Processor	RockChip RK3566 quad-core processor, max clock speed of up to 1.8GHz
	Memory	Standard configuration of 2GBG
	Built-in storage	16GB (16GB/32GB/64GB selectable)
	External storage	TF card
	Network/BT	Supports 2.4G wireless network WiFi, Bluetooth V4.0 connectivity
	Interface	2 micro USB (OTG), 1 TF, 1 Type-c (DC 12V power supply)
	Operating System	Android 11
Power supply	Power	≤16W
Power supply	Voltage	DC 12V
Whole machine and packaging	Size	600.3264.0919.1mm
	Net weight	1.05kg
	Package size	820300140mm
	Gross weight(5 units per box)	TBA
Environment	Working environment	Temperature: 0°C~50°C Humidity: 10%~85% Pressure: 86kPa~104kPa
Environment	Storage environment	Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa
Certification	CE, FCC certification	Available
Accessories	Warranty	1 year
	Accessories	Adapters, wall mounting plate
	Other options	OTG cable
Optional	information release system	Multiple Format Playback: Displays images, text, videos, web pages, and more.
		Multi-Zone Visual Editing: Supports template management for flexible content layout.
		Distributed Remote Management: Enables remote updates and scheduled power on/off.
		Multi-Account Management: Allows for the assignment of over 50 types of permissions.
		System Monitoring: Provides real-time status updates and terminal log queries.
		Log Statistics and Export: Terminal logs can be queried and exported to Excel documents.
