47.1inch Android Digital Bar Display - USB-Powered HD Smart Screen

This product is a large format digital signage solution with a 47.1-inch display area and a resolution of 3840x1920 pixels. It features a T972 quad-core ARM Cortex-A55 processor and 2GB of memory. The

PRODUCT Size:47.1" Display area：1196.16(H)X49.84(V)mm Resolution：3840(V)x160(H) Brightness：500 cd/㎡ Backlight source：WLED Lifespan：50000 hours

Get a quote Set OEM

LCD display Details

BR47X1B-N Advertising Screen Overview

The system supports wireless network connectivity via built-in WiFi (default 2.4G single band, configurable as dual-band 2.4G/5G) and Bluetooth 4.2. It includes a 12V power supply and consumes no more than 30W of power. The net weight of the device is less than 3kg.

The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.

The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.

Product feature

LCD HD display
Support 7*24 hours work
Single machine playback
Split-screen display

Customizable Smart Bar Screen: Variable Sizes

Enhance your venue with our Customizable Smart Bar Screen, offering flexible sizing to fit any space. Perfect for bars, clubs, and lounges, these displays provide vibrant visuals and seamless integration for menus, promotions, or live events. With advanced technology and tailored options, elevate your space and engage your audience effectively.

Customizable Smart Bar LCD Screen: Advanced Features for Ultimate Flexibility

Enhance your space with our Customizable Smart Bar LCD Screen, offering:

Orientation Flexibility: Switch between horizontal and vertical modes effortlessly.
USB Playback: Play content directly from USB drives for quick setup.
Multiple Sizes: Choose the perfect size to match your needs.
HD Display: Enjoy clear, vibrant visuals that capture attention.
Remote Management: Manage displays remotely via network connectivity.
24/7 Operation: Reliable performance for continuous use.
Connectivity Options: WiFi, Ethernet, Bluetooth for seamless integration.
Intelligent Power Control: Automate power schedules for energy efficiency.
Android System: User-friendly interface with smooth operation and app support.
Our smart bar LCD screens combine flexibility, reliability, and cutting-edge technology to elevate your environment and engage your audience effectively.

IPS Screen with 100% Color Gamut: Stunning Visuals

Experience exceptional visual quality with our IPS Screen. Featuring a 100% color gamut and 16.7 million colors, it delivers natural, detailed images without dragging or motion blur.

Key Features:
100% Color Gamut: Vibrant, true-to-life colors.
16.7M Colors: Exceptional detail and realism.
Natural Picture: Enhanced color accuracy for lifelike images.
No Dragging: Smooth transitions and clear visuals.
Upgrade your display with technology that ensures vivid, realistic images for any setting.

Product Parameter(Model: BR47X1B-N)

TFT Screen	Size	47.1"
	Display area	1196.16(H)X49.84(V)mm
	Resolution	3840(V)x160(H)
	Brightness	500 cd/㎡
	Backlight source	WLED
	Lifespan	50000 hours
	Viewable angle	89/89/89/89 (Typ.)(CR≥10)
	Contrast ratio	1000:1
	Frame rate	60 Hz
	Color depth	16.7M
System	Processor	T972 Quad core AR Cortex-A55 1.9GHZ
	Memory	2GB
	Built-in storage	16GB (16GB/32GB/64GB selectable)
	External storage	Max supports 128GB TF card
	Network/BT	Built-in WiFi (default 2.4G single band, configurable as dual-band 2.4G/5G) / BT4.2

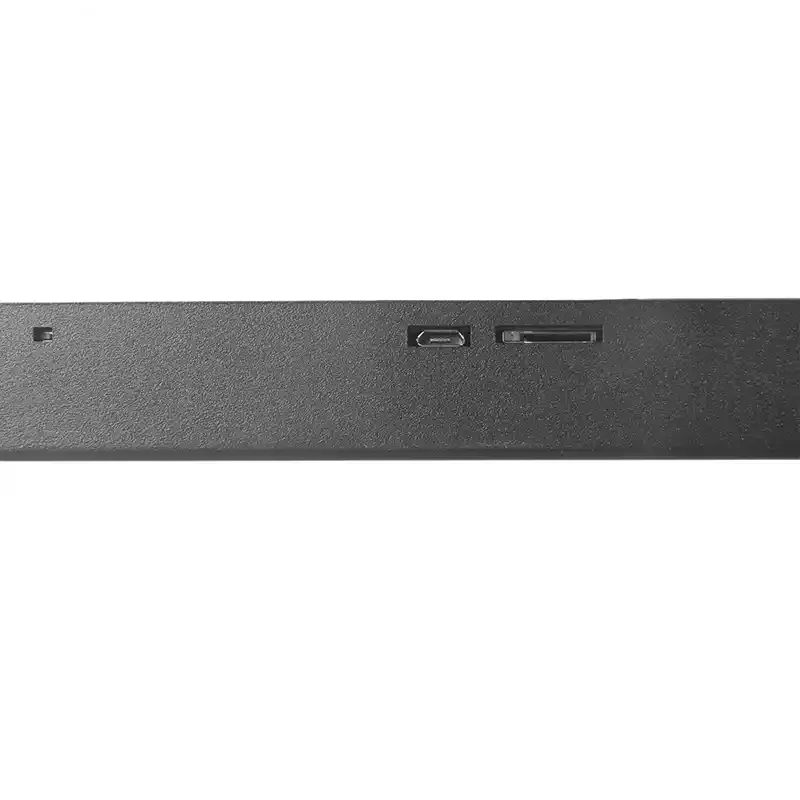

	Interface	1micro USB (OTG), 1USB 2.0, 1TF card slot, 1Type-C (for DC 12V power supply)
	Operating System	Android 9.0
Power supply	Power	≤30W
Power supply	Voltage	DC 12V
Whole machine and packaging	Size	1214.868.825mm
	Net weight	≤3kg
	Package size (4 units per box)	1300380150mm
	Gross weight(4 units per box)	17.6KG
Environment	Working environment	Temperature: 0°C~50°C Humidity: 10%~85% Pressure: 86kPa~104kPa
Environment	Storage environment	Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa
Certification	CE, FCC certification	Available
Accessories	Warranty	1 year
	Accessories	Adapters, wall mounting plate
	Other options	OTG cable
Optional	information release system	Multiple Format Playback: Displays images, text, videos, web pages, and more.
		Multi-Zone Visual Editing: Supports template management for flexible content layout.
		Distributed Remote Management: Enables remote updates and scheduled power on/off.
		Multi-Account Management: Allows for the assignment of over 50 types of permissions.
		System Monitoring: Provides real-time status updates and terminal log queries.
