35inch Android USB Digital Signage - HD Screen

This product is a 35-inch high-definition advertising screen with a T972 quad-core ARM Cortex-A55 processor and 2GB of memory. It has a resolution of 3840x200 pixels and a brightness of 500 cd/m². Th

Get a quote Set OEM

LCD display Details

BR35XCB-N Advertising Screen Overview

This product is a 3.5-inch high-definition advertising screen with a T972 quad-core ARM Cortex-A55 processor and 2GB of memory. It has a resolution of 3840x200 pixels and a brightness of 500 cd/m². The contrast ratio is 1000:1 and it supports a frame rate of 60 Hz. The color depth is 1.07B.

The system supports wireless network connectivity via built-in WiFi (default 2.4G single band, configurable as dual-band 2.4G/5G) and Bluetooth 4.2. It includes a 12V power supply and consumes no more than 30W of power. The net weight of the device is less than 1.5kg.

The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.

The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.

Product feature

LCD HD display
Support 7*24 hours work
Single machine playback
Split-screen display

Product Parameter(Model: BR35XCB-N)

TFT Screen	Size	35"

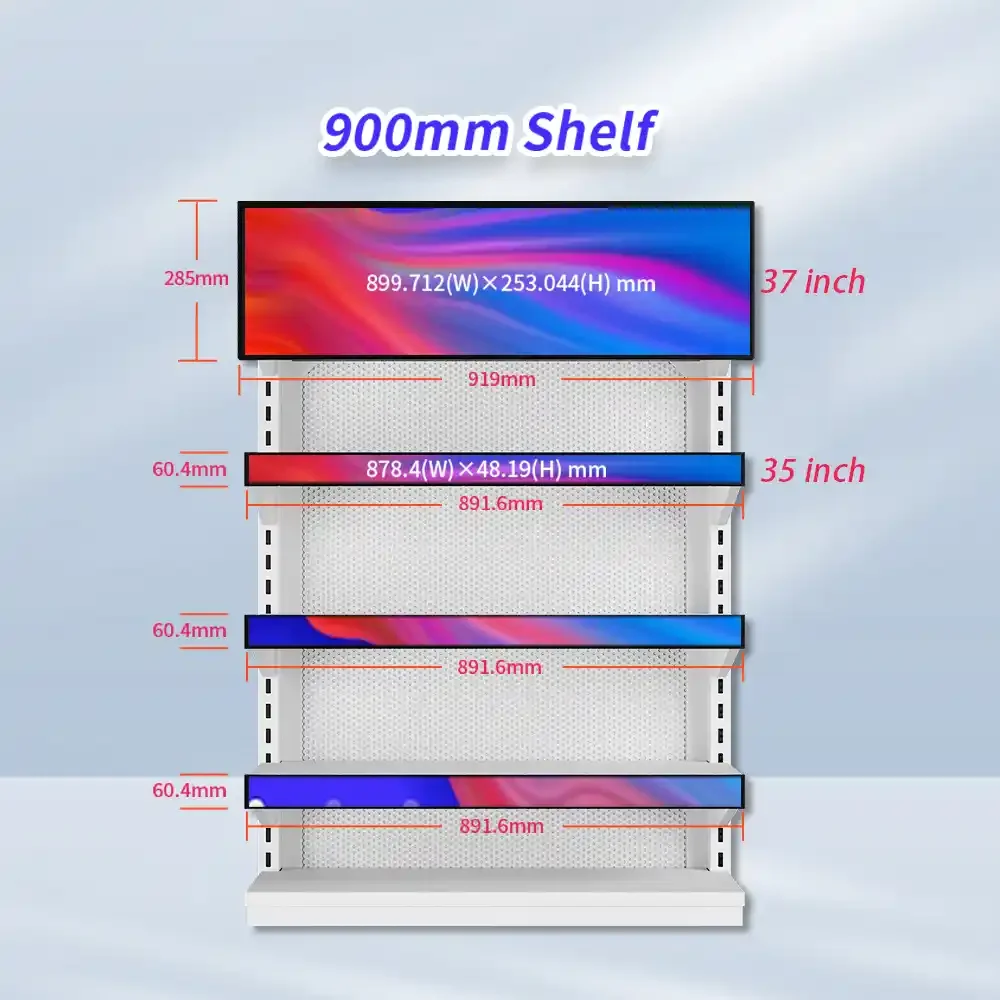

	Display area	877.824(H)X45.72(V)mm
	Resolution	3840(V)x200(H)
	Brightness	500 cd/㎡
	Backlight source	WLED
	Lifespan	50000 hours
	Viewable angle	178°(H) X 178°(V)
	Contrast ratio	1000:1
	Frame rate	60 Hz
	Color depth	1.07B
System	Processor	T972 Quad core AR Cortex-A55 1.9GHZ
	Memory	2GB
	Built-in storage	16GB (16GB/32GB/64GB selectable)
	External storage	Max supports 128GB TF card
	Network/BT	Built-in WiFi (default 2.4G single band, configurable as dual-band 2.4G/5G) / BT4.2
	Interface	1micro USB (OTG), 1USB 2.0, 1TF card slot, 1Type-C (for DC 12V power supply)
	Operating System	Android 9.0
Power supply	Power	≤30W
Power supply	Voltage	DC 12V
Whole machine and packaging	Size	891.660.423.0mm
	Net weight	≤1.5kg
	Package size (4 units per box)	1120320140mm
	Gross weight(4 units per box)	7.55KG
Environment	Working environment	Temperature: 0°C~50°C Humidity: 10%~85% Pressure: 86kPa~104kPa
Environment	Storage environment	Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa
Certification	CE, FCC certification	Available
Accessories	Warranty	1 year
	Accessories	Adapters, wall mounting plate
	Other options	OTG cable
Optional	information release system	Multiple Format Playback: Displays images, text, videos, web pages, and more.
		Multi-Zone Visual Editing: Supports template management for flexible content layout.
		Distributed Remote Management: Enables remote updates and scheduled power on/off.
		Multi-Account Management: Allows for the assignment of over 50 types of permissions.
		System Monitoring: Provides real-time status updates and terminal log queries.
