24inch Android Digital Bar: HD USB Ad Signage

Get a quote Set OEM

LCD display Details

BR24XCB-N Advertising Screen Overview

This product is a 24-inch high-definition advertising screen with a RockChip PX30 quad-core ARM Cortex-A35 processor and 1GB of memory. It has a resolution of 1920x360 pixels and a brightness of 300 cd/m². The contrast ratio is 1000:1 and it supports a frame rate of 60 Hz. The color depth is 16.7M , 72% NTSC.

The system supports wireless network connectivity via Wi-Fi and Bluetooth v4.0 and includes a 12V power supply. The power consumption is ≤25W and the voltage is DC 12V. The net weight of the device is less than 2.6kg.

The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.

The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.

Product feature

LCD HD display
Support 7*24 hours work
Single player
The APK starts automatically

Product Parameter(Model: BR24XCB-N)

TFT Screen	Size	24"

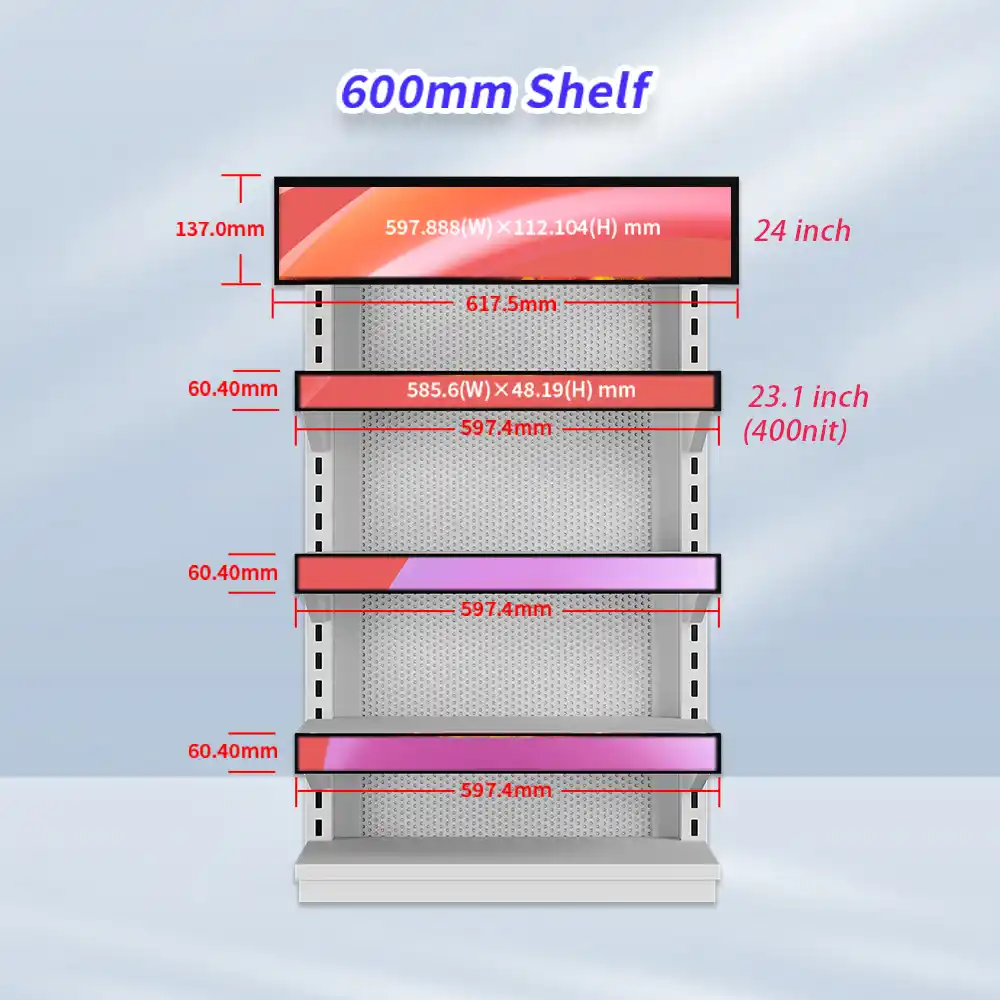

	Display area	597.888(H)X112.104(V)mm
	Resolution	1920(V)x360(H)
	Brightness	300 cd/㎡
	Backlight source	WLED
	Lifespan	30000 hours
	Viewable angle	89/89/89/89 (Typ.)(CR≥10)
	Contrast ratio	1000:1
	Frame rate	60 Hz
	Color depth	16.7M , 72% NTSC
System	Processor	Rockchip PX30 Quad core ARM Cotex-A35
	Memory	1GB
	Built-in storage	8GB (8GB/16GB/32GB/64GB selectable)
	External storage	Max supports 64GB TF card
	Network/BT	Supports 2.4G wireless network WiFi, Bluetooth V4.0 connectivity

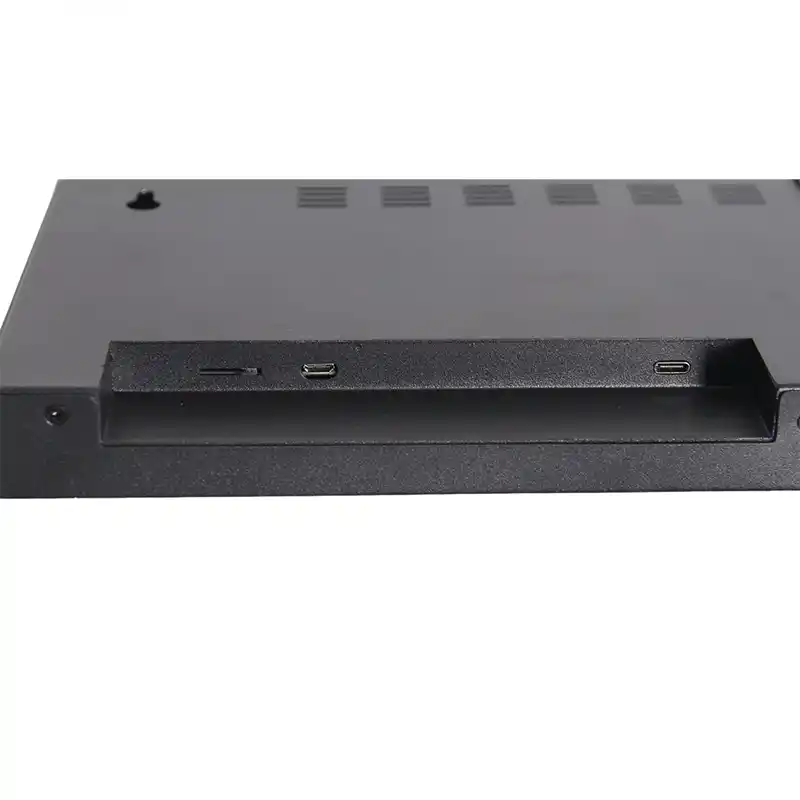

	Interface	1 micro USB (OTG), 1 SD card, 1 Type-c (DC 12V power supply)
	Operating System	Android 8.1
Power supply	Power	≤25W
Power supply	Voltage	DC 12V
Whole machine and packaging	Size	617.513727.2mm
	Net weight	≤2.6kg
	Package size (4 units per box)	710220200mm
	Gross weight(4 units per box)	10.8KG
Environment	Working environment	Temperature: 0°C~50°C Humidity: 10%~85% Pressure: 86kPa~104kPa
Environment	Storage environment	Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa
Certification	CE, FCC certification	Available
Accessories	Warranty	1 year
	Accessories	Adapters, wall mounting plate
	Other options	OTG cable
Optional	information release system	Multiple Format Playback: Displays images, text, videos, web pages, and more.
		Multi-Zone Visual Editing: Supports template management for flexible content layout.
		Distributed Remote Management: Enables remote updates and scheduled power on/off.
		Multi-Account Management: Allows for the assignment of over 50 types of permissions.
		System Monitoring: Provides real-time status updates and terminal log queries.
