19inch Android HD Bar: USB Ad Smart Signage

This 19-inch high-definition liquid crystal display features a resolution of 1920x360 pixels and delivers 300 cd/m² brightness. With a WLED backlight source, it boasts a lifespan of 30,000 hours, a co

Get a quote Set OEM

LCD display Details

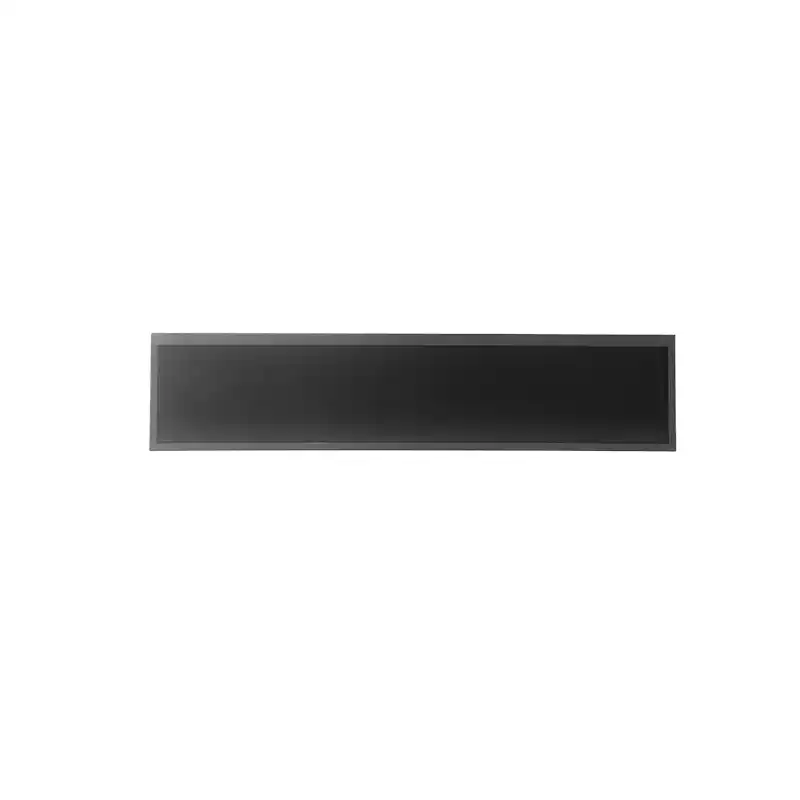

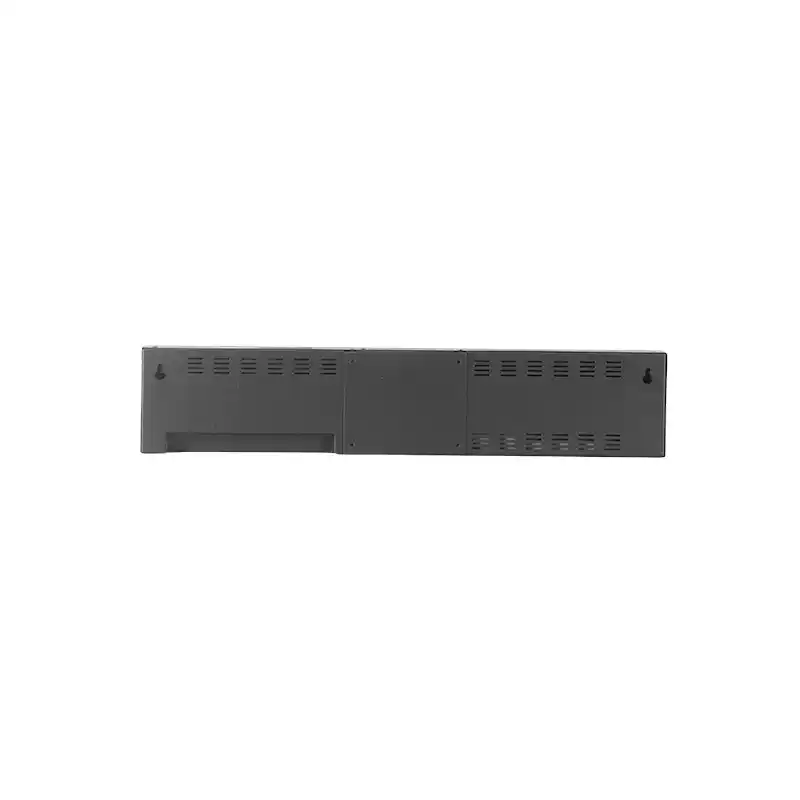

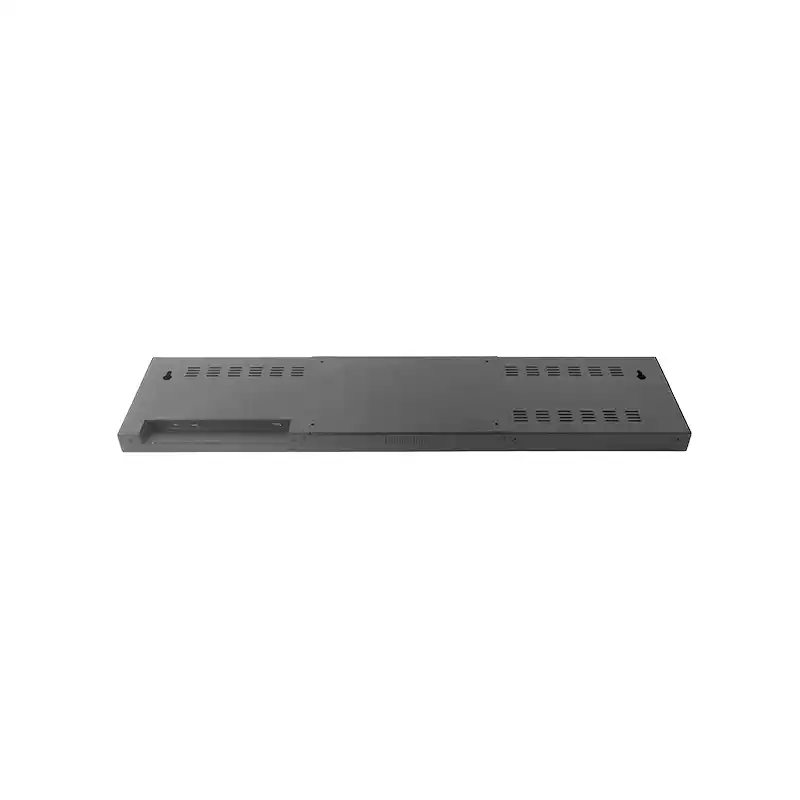

BR19XCB-N Advertising Screen Overview

This device features a 19-inch high-definition liquid crystal display with a resolution of 1920x360 pixels and brightness of 300 cd/m². It uses an WLED backlight source and has a lifespan of 30,000 hours. The contrast ratio is 1200:1 and it supports a frame rate of 60 Hz. The color depth is 16.7M , 72% NTSC.

The system runs on Rockchip PX30 Quad core ARM Cotex-A35 processor clocked at 1.5GHz and comes with 1GB DDR3 RAM. It has 8GB built-in storage (selectable between 8GB/16GB/32GB/64GB). It supports external storage up to 64GB TF card. It supports wireless network connectivity via Wi-Fi and Bluetooth V4.0. The interface includes 2 micro USB (OTG), 1 TF card, and 2 Type-c (DC 12V power supply). The operating system is Android 8.1.

The power consumption is ≤20W and the voltage is DC 12V. The net weight of the device is less than 1.8kg.

The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.

The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.

Product feature

LCD HD display
Support 7*24 hours work
Single player
The APK starts automatically

Product Parameter(Model: BR19XCB-N)

TFT Screen	Size	19"
	Display area	476.64(H)X89.37(V)mm
	Resolution	1920(V)x360(H)
	Brightness	300 cd/㎡
	Backlight source	WLED
	Lifespan	30000 hours
	Viewable angle	89/89/89/89 (Typ.)(CR≥10)
	Contrast ratio	1200:1
	Frame rate	60 Hz
	Color depth	16.7M , 72% NTSC
System	Processor	Rockchip PX30 Quad core ARM Cotex-A35
	Memory	1GB
	Built-in storage	8GB (8GB/16GB/32GB/64GB selectable)
	External storage	Max supports 64GB TF card
	Network/BT	Supports 2.4G wireless network WiFi, Bluetooth V4.0 connectivity
	Interface	2 micro USB (OTG), 1 TF card, 2 Type-c (DC 12V power supply)
	Operating System	Android 8.1
Power supply	Power	≤20W
Power supply	Voltage	DC 12V
Whole machine and packaging	Size	495.9113.927.2mm
	Net weight	≤1.8 kg
	Package size	TBA
	Gross weight	TBA
Environment	Working environment	Temperature: 0°C~50°C Humidity: 10%~85% Pressure: 86kPa~104kPa
Environment	Storage environment	Temperature: -20°C~60°C Humidity: 5%~95% Pressure: 86kPa~104kPa
Certification	CE, FCC certification	Available
Accessories	Warranty	1 year
	Accessories	Adapters, wall mounting plate
	Other options	OTG cable
Optional	information release system	Multiple Format Playback: Displays images, text, videos, web pages, and more.
		Multi-Zone Visual Editing: Supports template management for flexible content layout.
		Distributed Remote Management: Enables remote updates and scheduled power on/off.
		Multi-Account Management: Allows for the assignment of over 50 types of permissions.
		System Monitoring: Provides real-time status updates and terminal log queries.
		Log Statistics and Export: Terminal logs can be queried and exported to Excel documents.
